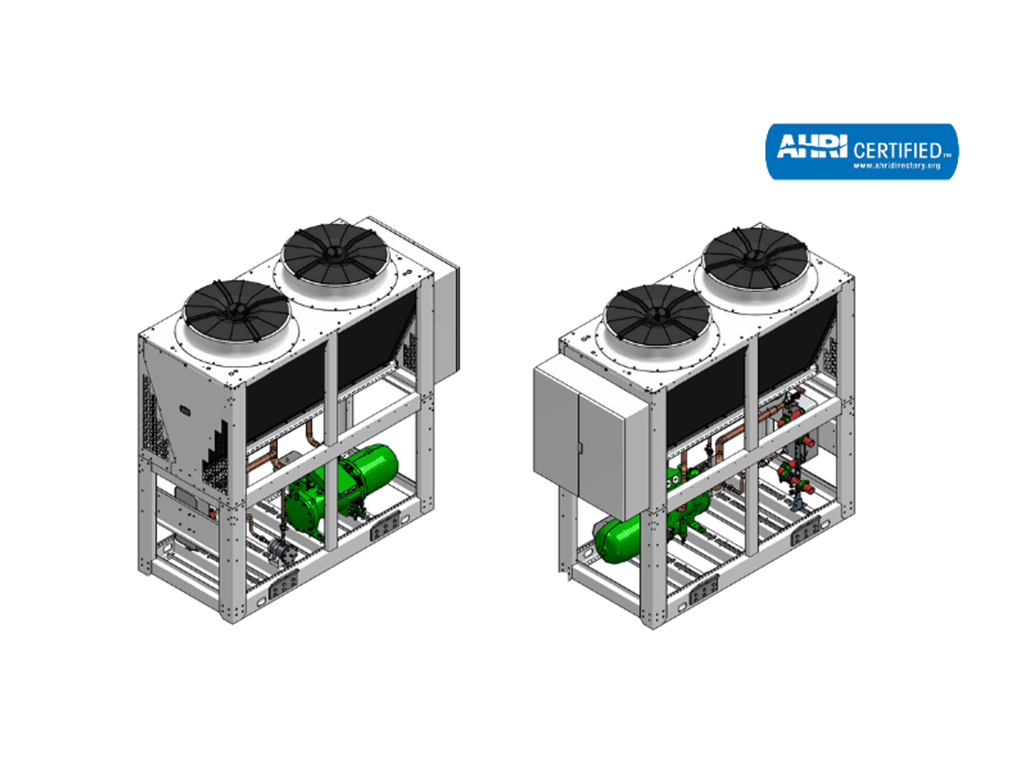

GHA B135B EC-13

Air-cooled chiller for outdoor installation

Compressor
Screw

Cooling capacity
73.66 kW (20.9 RT)

E.E.R.
2.59 W/W (8.84 Btu/Wh)

Refrigerant
R513A

Nominal voltage supply
3 Ph /400 V/50 Hz

Dimensions and weights
Length with electrical cabinet: 2560 mm (100.78 in)
Width: 1050 mm (41.33 in)
Height: 2540 mm (100 in)
Shipping/operating weight: 1269/1276 kg (2797/2813 lb)
