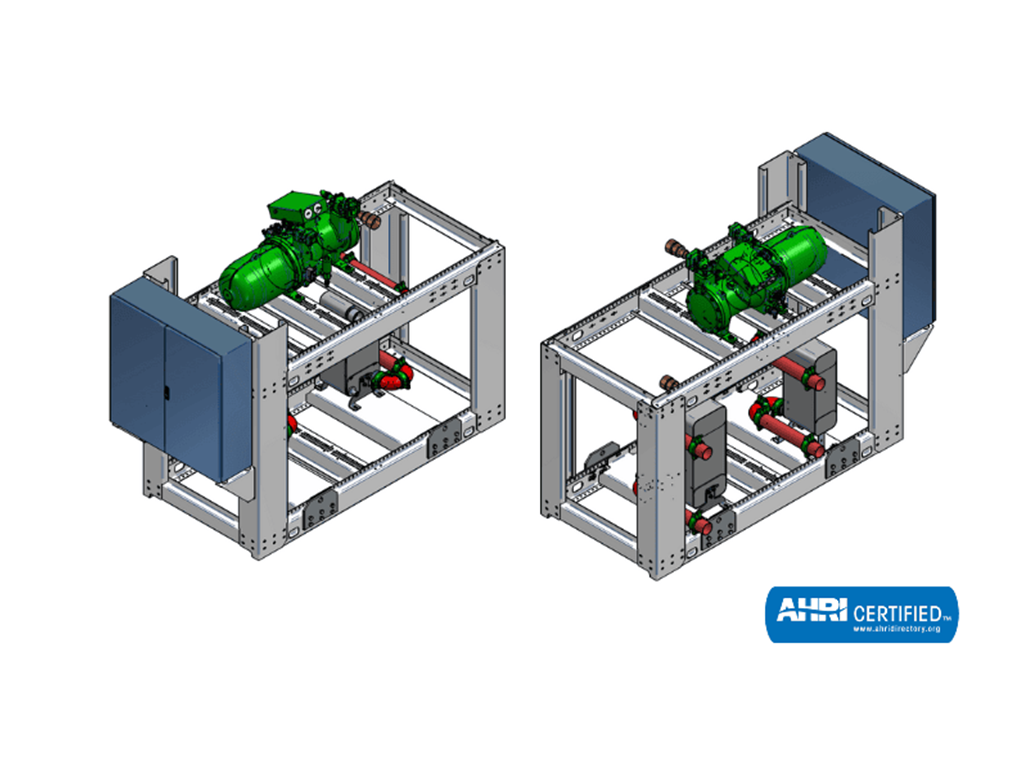

GHH B140 WT-13

Water-cooled chiller for indoor installation

Compressor
Screw

Cooling capacity
101.6 kW (28.9 RT)

E.E.R.
3.98 W/W (0.88 kW/Ton)

Refrigerant
R513A

Nominal voltage supply
3 Ph /400 V /50 Hz

Dimensions and weights
Length with electrical cabinet: 3000 mm (118.11 in)
Width: 800 mm (31.49 in)
Height: 1610 mm (63.38 in)
Shipping/operating weight: 1710/1740 kg (3,769/3,836 lb)
