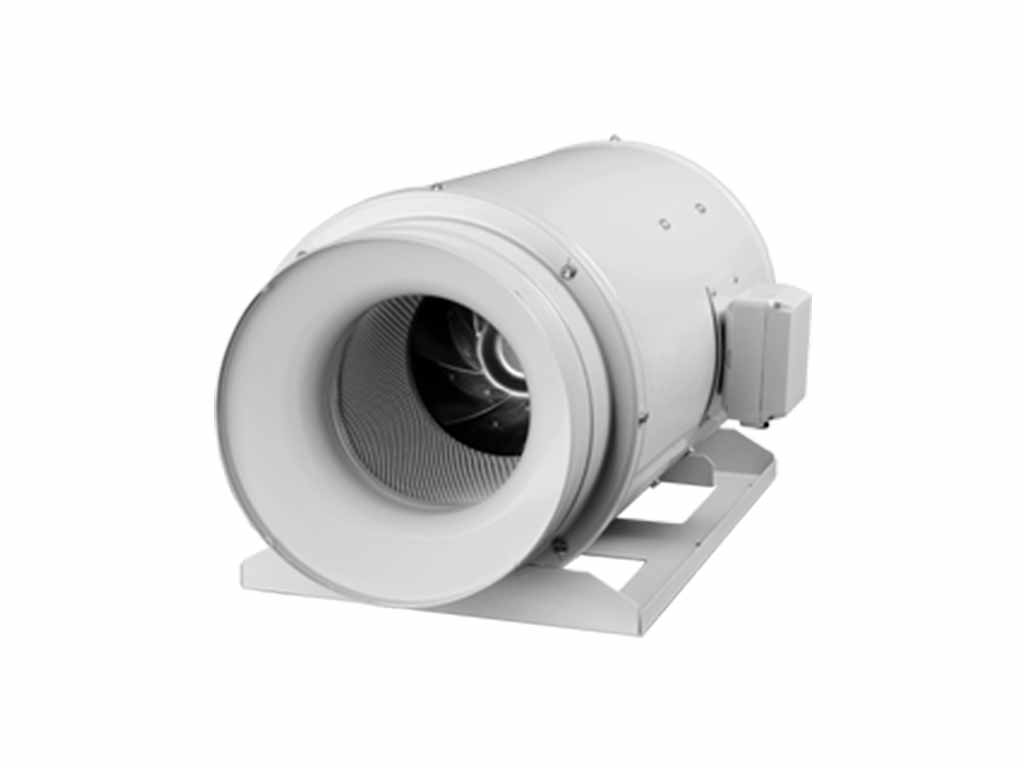

In-Line Mixed Flow Duct Fan
Low profile Mixed Flow fans with sound-absorbent insulation Extremely quiet.
The low profile of the MTD Silent fans makes the most effective solution for installations where space is limited such as in ceiling voids.
Both air and sound performance ratings are tested and certified by AMCA, in accordance to AMCA211 and AMCA311 Standards.
Quick Facts
- Suitable for ducted ventilation system
- Size from 100 to 315
- Capacity up to 1877 m3/h
- High performance with significant noise reduction
Motors
MTD Silent 100/2~200/2
- Speed controllable 230V -50HZ motor, of two speed motors. IP 44.
- Motors are Class B, with ball bearings and safety thermal overload protection.
MTD Silent 250~315
- IP 44. External terminal box IP 55.
- Removable fan body with two speed motor, single phase 230V-50/60 Hz speed controllable, Class F, external rotor aluminium motor with capacitor and thermal protection.
Additional Information
The models offer solutions to ventilation problems, especially in places where people work and low sound level is required.
