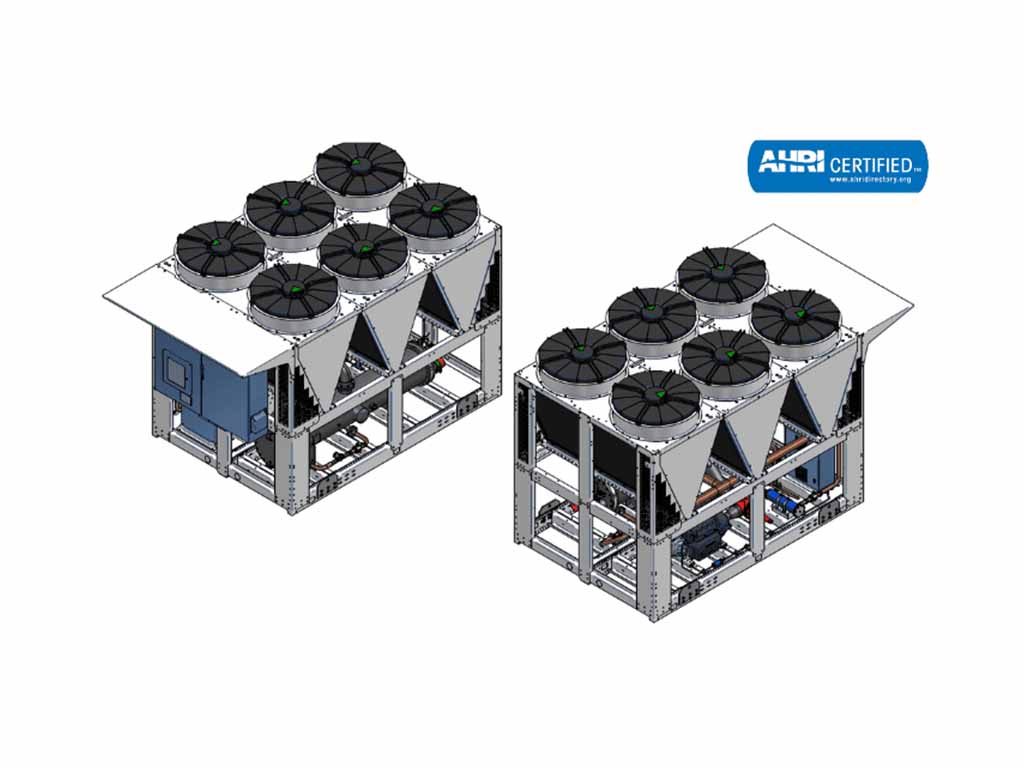

TMA 1A300B EC-13 K

Air-cooled chiller for outdoor installation

Compressor
Centrifugal oil-free compressor with magnetic levitation

Cooling capacity
316.2 kW (89.9 RT)

E.E.R.
2.80 W/W (9.55 Btu/Wh)

Refrigerant
R513A

Nominal voltage supply
3 Ph/400 V/50 Hz

Dimensions and weights
Length with electrical cabinet: 3,460 mm (136.22 in)
Width: 2,100 mm (82.67 in)
Height: 2,540 mm (100 in)
Shipping/operating weight: 2,728/2,780kg (6,014/6,128 lb)
