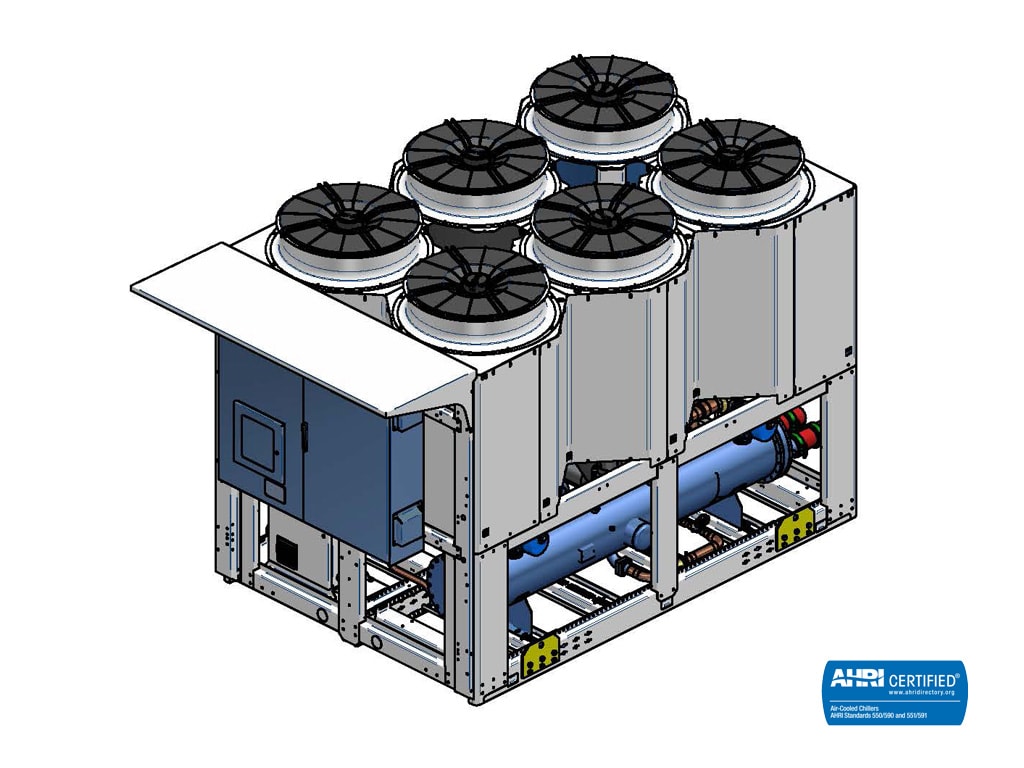

TMA 1G300B EC-13 CM

Air-cooled chiller with cylindrical condensers for outdoor installation

Compressor
Centrifugal oil-free compressor with magnetic levitation

Cooling capacity
300 kW (85.3 RT)

E.E.R.
2,56 W/W (8.73 Btu/Wh)

Refrigerant
R513A

Nominal supply voltage
3 Ph/400 V/50 Hz

Dimensions and weights
Length with electrical cabinet: 3,460 mm (136.22 in)
Width: 2,100 mm (82.67 in)
Height: 2,500 mm (98.42 in)
Shipping/operating weight: 3,250/3,370 kg (7,165/7,429 lb)
