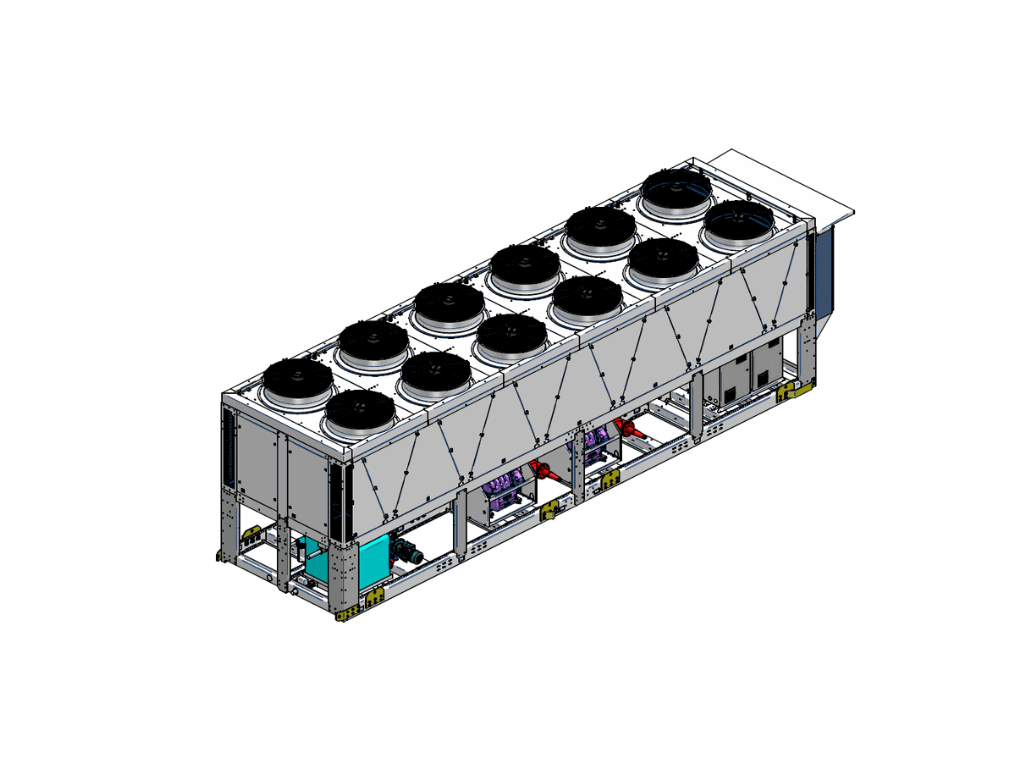

TMA 2B825B ES EC-34 K

Adiabatic air-cooled chiller with oil-free centrifugal compressors for outdoor installation

Cooling Capacity
900 kW (255.9 RT)

E.E.R.*
3.68 W/W (12.56 Btu/Wh)

Refrigerant
R134a

Power circuit voltage (Ph/V/Hz)
3/380-430/50

Dimensions/Weights
Length with electrical cabinet: 8410 mm (331.1 in)
Width: 2100 mm (82.6 in)
Height: 2500 mm (98.4 in)
Shipping / Operating Weight: 6466 / 6806 kg (14255 / 15004 lb)
