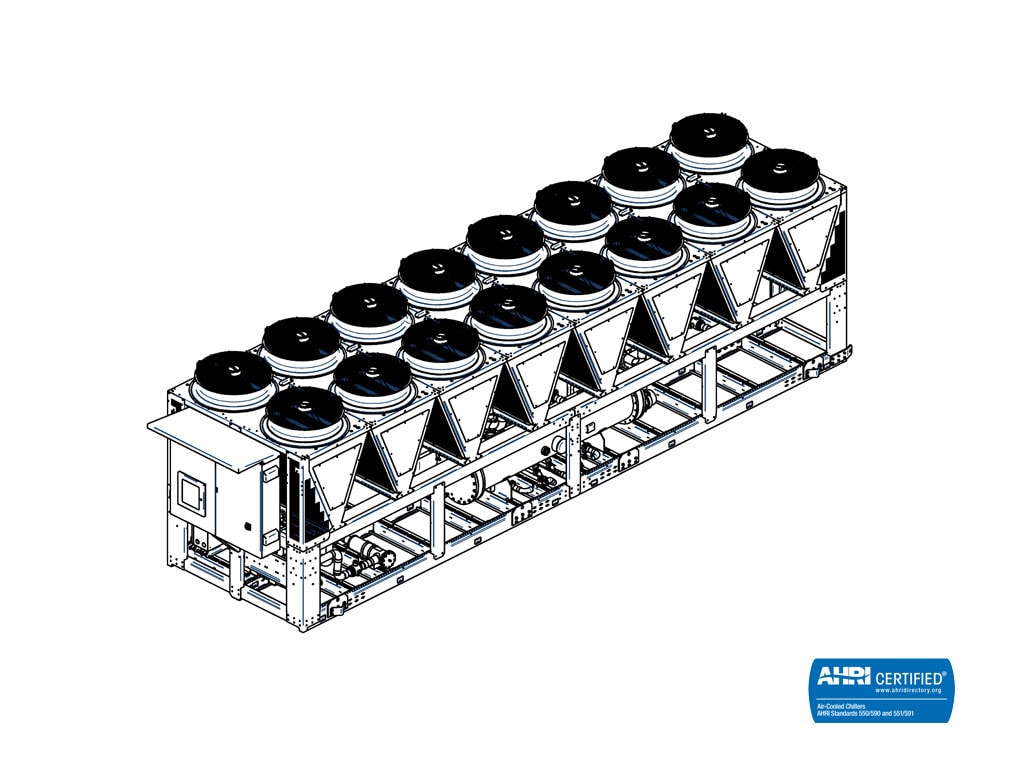

TMA 3A900A EC-34 K

Air cooled chiller with oil-free centrifugal compressors for outdoor installation

Cooling Capacity
900 kW (256 RT)

E.E.R.*
3.52 W/W (12.01 Btu/Wh)

Refrigerant
R134a

Power circuit voltage
460/3/50 Hz

Dimensions/Weights
Length with electrical cabinet: 8710 mm (343 in)
Width: 2250 mm (88 in)
Height: 2450 mm (96 in)
Shipping / Operating Weight: 5991 / 6110 kg (12326 / 13470 lb)
