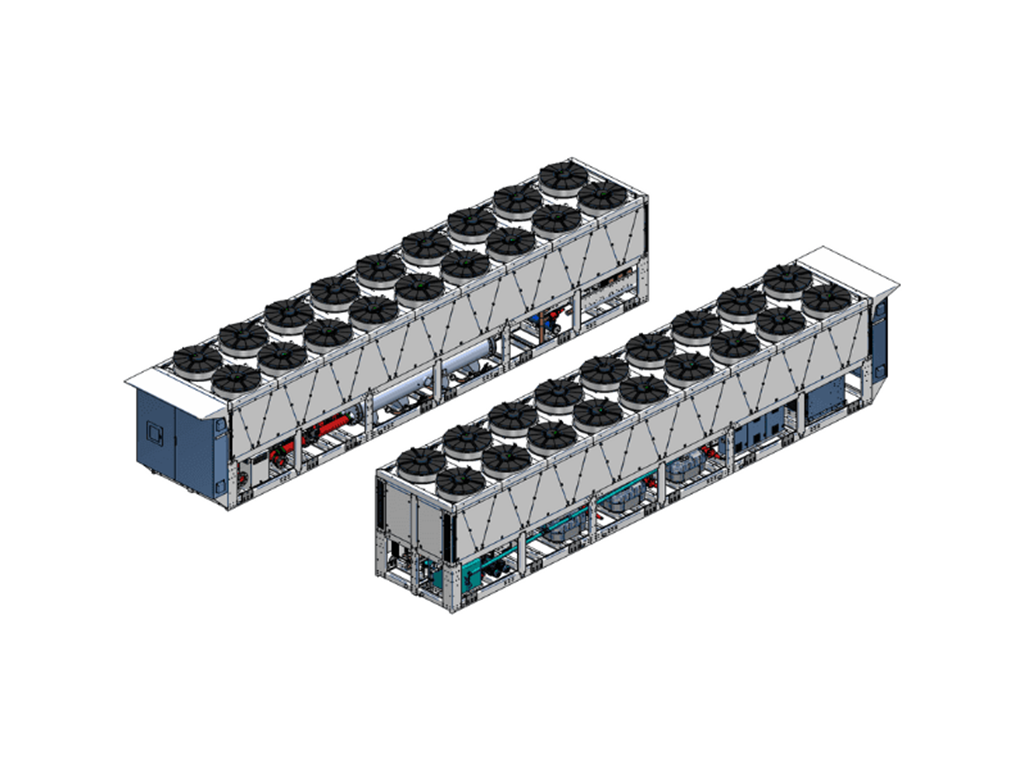

TMA 3B1280B ES EC-34 K

Adiabatic air-cooled chiller for outdoor installation

Compressor
Centrifugal oil-free compressor with magnetic levitation

Cooling capacity
1,550 kW (426.5 RT)

E.E.R.
4.78 W/W (16.31 Btu/Wh)

Refrigerant
R134a

Nominal voltage supply
3 Ph/400 V/50 Hz

Dimensions and weights
Length with electrical cabinet: 12,310 mm (484.64 in)
Width: 2,100 mm (82.67 in)
Height: 2,540 mm (100 in)
Shipping/operating weight: 9,650/10,103 kg (21,274/22,273 lb)

Available units
2
