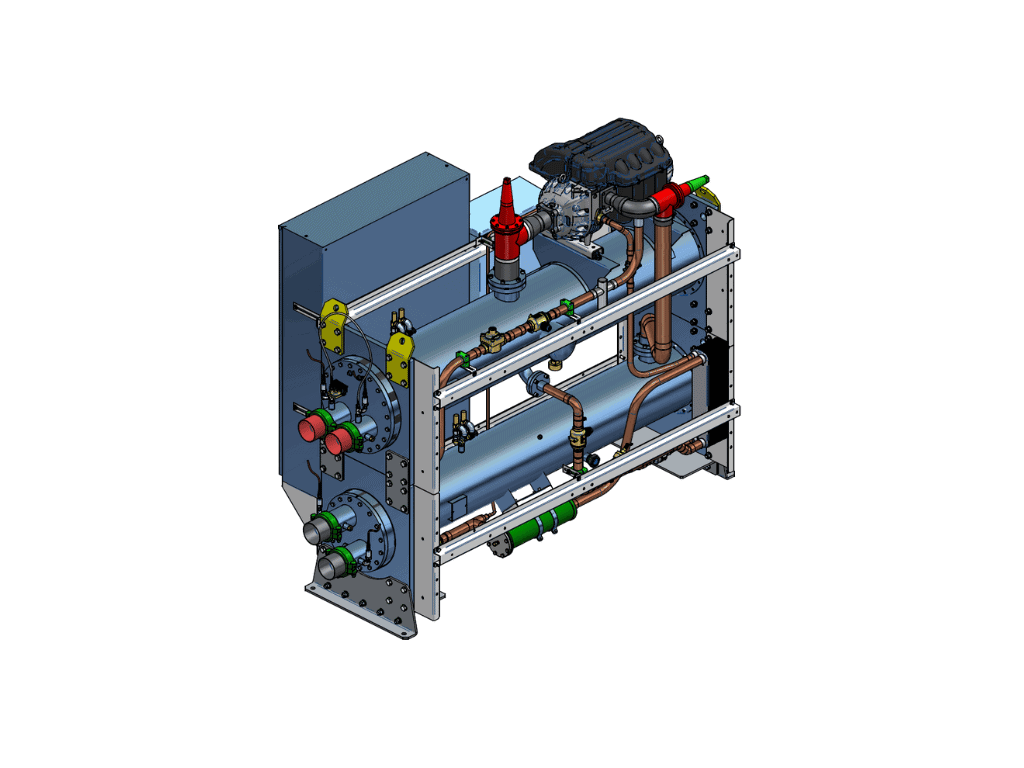

TMH 1A300 WT-34

Water-cooled chiller for indoor installation

Cooling Capacity
300 kW (85.3 RT)

E.E.R.*
5.51 W/W (0.64 kW/Ton)

Refrigerant
R134a

Power circuit voltage (Ph/V/Hz)
3/380-430/50

Dimensions/Weights
Length with electrical cabinet: 2800 mm (110.2 in)
Width: 1000 mm (39.3 in)
Height: 1780 mm (70.0 in)
Shipping / Operating Weight: 2060 / 2165 kg (4541 / 4773 lb)
