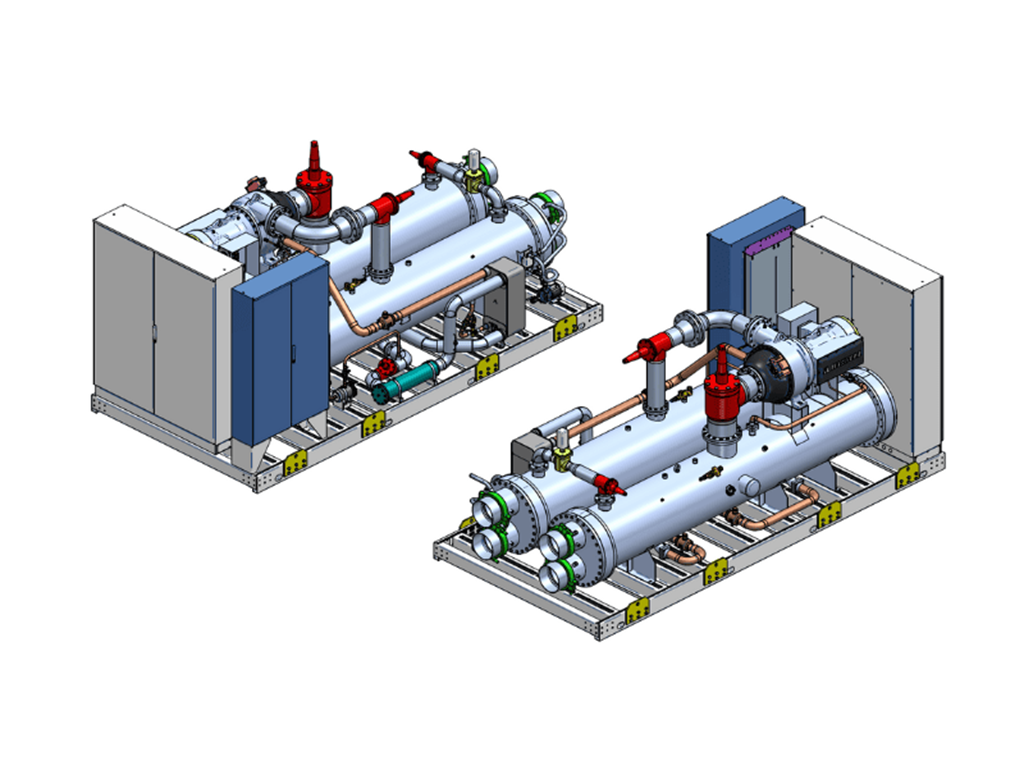

TMH 1H1400 WT-34

Water-cooled chiller for indoor installation

Compressor
Centrifugal oil-free compressor with magnetic levitation

Cooling capacity
1,500 kW (426.5 RT)

E.E.R.
6.45 W/W (0.55 kW/Ton)

Refrigerant
R134a

Nominal voltage supply
3 Ph/400 V/50 Hz

Dimensions and weights
Length with electrical cabinet: 4,600 mm (181.10 in)
Width: 2,250 mm (88.58 in)
Height: 2,125 mm (83.66 in)
Shipping/operating weight: 7,660/8,284 kg (16,887/18,263 lb)
