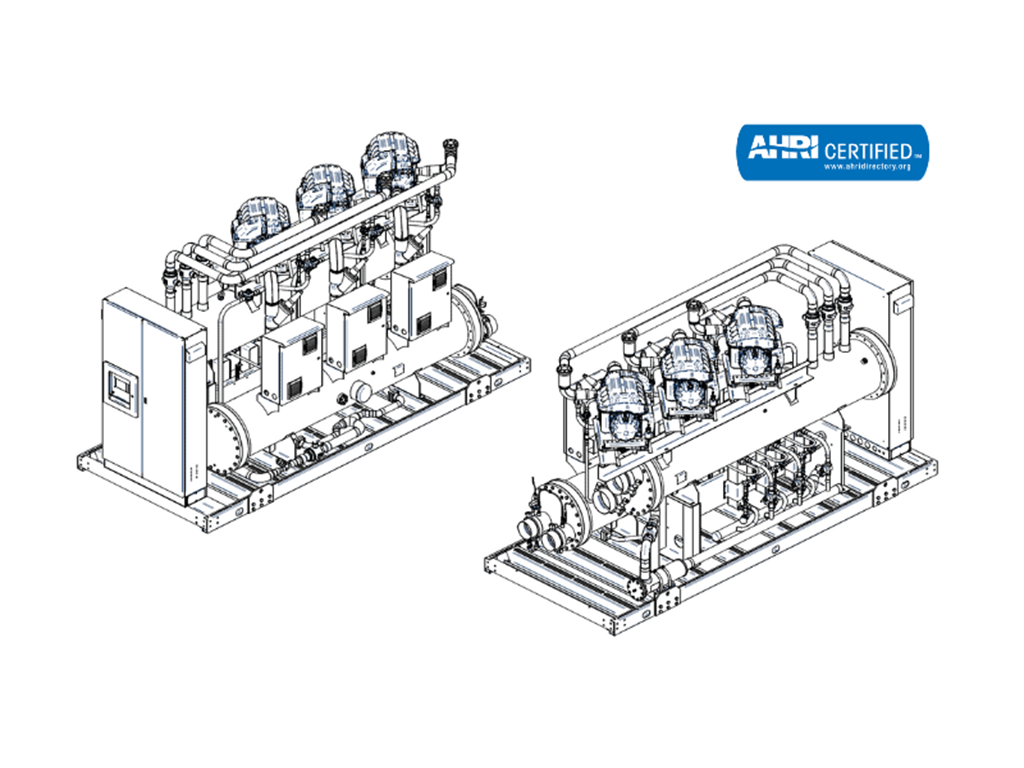

TMH 3A900-34

Water-cooled chiller for indoor installation

Compressor
Centrifugal oil-free compressor with magnetic levitation

Cooling capacity
900 kW (255.9 kW)

E.E.R.
5,70 W/W (0.62 kW/Ton)

Refrigerant
R134a

Nominal supply voltage
3 Ph / 400 V / 50 Hz

Dimensions and weights
Lengths with electrical cabinet: 4,000 mm (157.48 in)
Width: 1,600 mm (62.99 in)
Height: 2,100 mm (82.67 in)
Shipping/operating weight: 4,792/5,078 kg (10,564/11,195 lb)
