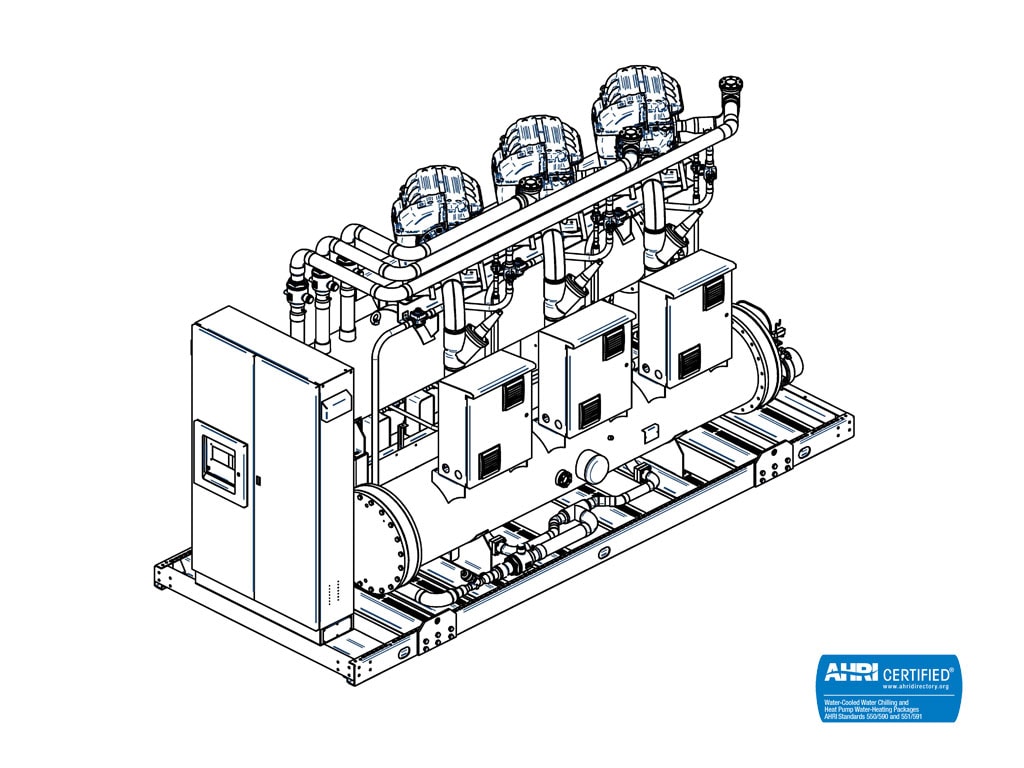

TMH 3A900 DC-34

Water cooled chiller with oil-free centrifugal compressors for indoor installation

Cooling Capacity
900 kW (256 RT)

E.E.R.*
5.70 (19.45 Btu/Wh)

Refrigerant
R134a

Power circuit voltage
400/3/50 Hz

Dimensions/Weights
Length with electrical cabinet: 4000 mm (157 in)
Width: 1600 mm (63 in)
Height: 2100 mm (83 in)
Shipping / Operating Weight: 4792 / 5078 kg (10564 / 11195 lb)
