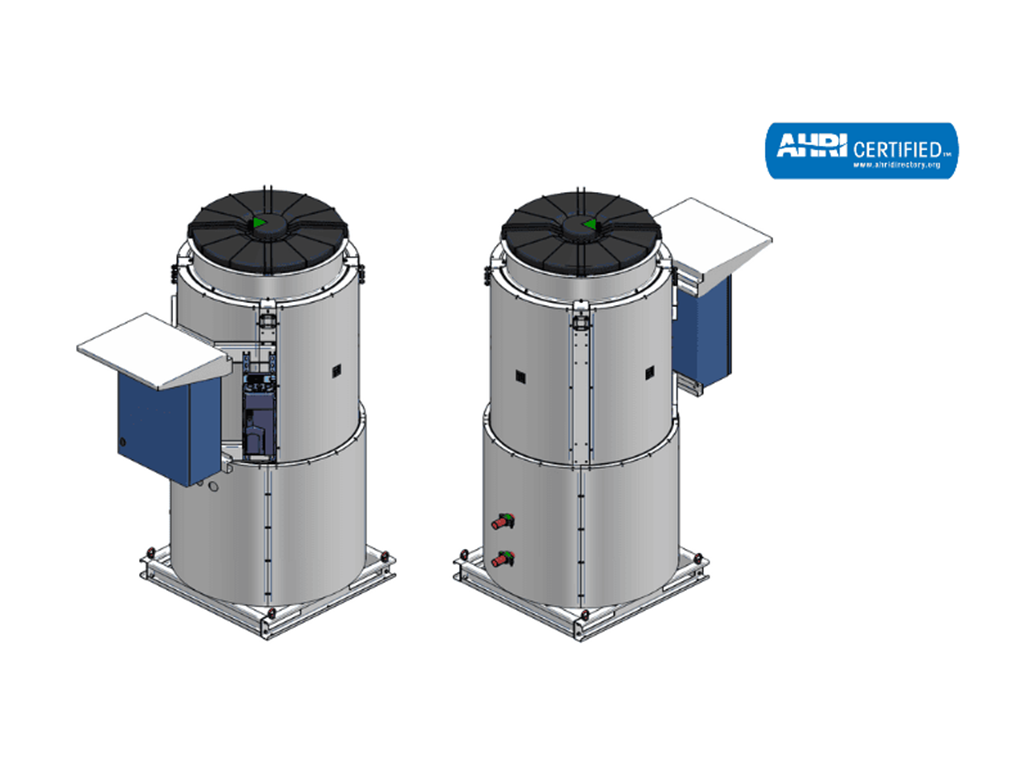

VHA F1V25B LN EC-ZE CM

Low-noise air-cooled chiller with cylindrical condensers for outdoor installation

Compressor
Reciprocating

Cooling capacity
41.68 kW (11.9 RT)

E.E.R.
3.00 W/W (10.24 Btu/Wh)

Refrigerant
HFO-R1234ze

Nominal supply voltage
3 Ph / 400 V / 50 Hz

Dimensions and weights
Length with electrical cabinet: 1,600 mm (62.99 in)
Width: 1,200 mm (47.24 in)
Height: 2,400 mm (94.48 in)
Shipping/operating weight: 790/810kg (1,741/1,785 lb)
